Description

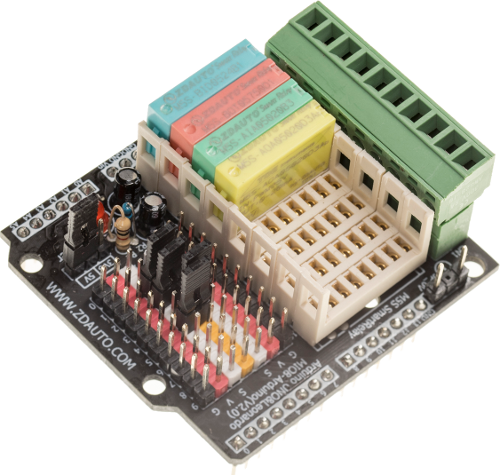

Using the MIO-UNO evaluation board, the functionality of M5S I/O modules can be explored easily.

The M5S I/O modules allow switching of external circuits and input of external circuits with higher voltages than directly allowed on the Arduino/Raspberry Pi, e.g. 24 V or 230 V.

Features

• 8 sockets for M5S modules
• Terminal blocks for external circuit (EXT-S) and external power supply, e.g. 24 V DC
• Pin header for internal circuit (INT-S)
• Configuration and pin mapping of internal circuit to processor pins via jumper cables
• Isolated circuit possible if only isolated M5S modules are used
• Also as starter kit MIO-UNO-KIT with the following four isolated M5S modules:
  • BID0524B1 (24 V switching input)
  • BOT05750D1b (24 V switching output)
  • AIA05020B3 (20 mA analogue input)
  • AOA05020D3Ab (20mA analogue output)

Description

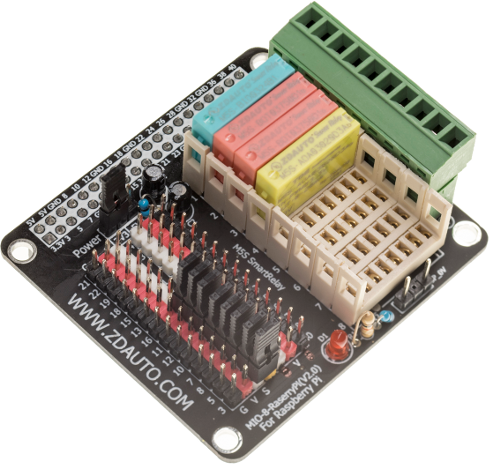

Using the MIO-RASPBERRYPI evaluation board, the functionality of M5S I/O modules can be explored easily.

The M5S I/O modules allow switching of external circuits and input of external circuits with higher voltages than directly allowed on the Raspberry Pi, e.g. 24 V or 230 V.

All Raspberry Pi models with a 40-pin GPIO interface, e.g. Pi 1 Model B+, Pi 3 Model B, are supported.

Features

• 8 sockets for M5S modules
• Terminal blocks for external circuit (EXT-S) and external power supply, e.g. 24 V DC
• Pin header for internal circuit (INT-S)
• Configuration and pin mapping of internal circuit to processor pins via jumper cables
• Isolated circuit possible if only isolated M5S modules are used
• Also as starter kit MIO-RASPBERRYPI-KIT with the following four isolated M5S modules:
  • BID0324B1 (24 V switching input)
  • 2 × BOT03750D1b (24 V switching output)
  • AOA03020D3Ab (20 mA analogue output)
