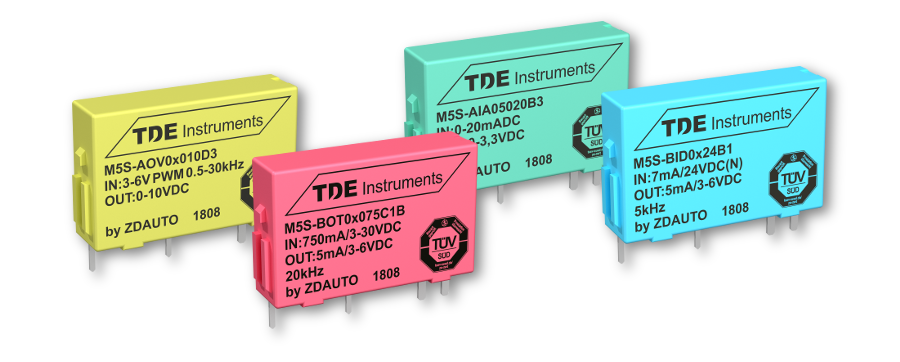

Modular I/O components
Modular components with integrated circuits aiming at versatile operation in industrial systems like regulators or programmable logic controllers.
Connection of electronics and industrial control
The modules are a connecting element between electronics on one side as well as the world of industrial control on the other side. The modules are completely sealed, water proof, fire proof and dust proof.

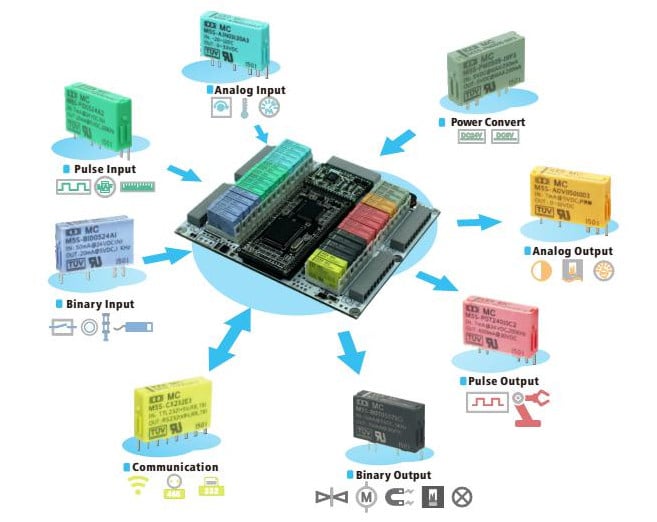

Universal wiring diagram for full flexibility
A universal wiring diagram allows all M5S I/O modules to be interchangeable without the need to change the internal or external wiring. By plugging different modules, customer specific input/output configurations can be achieved as well as the addition of functions to already rolled-out devices.
Modular I/O components - digital input
Description
For detection of switch states, pulses or encoder signals.
Features
- Signal: 0-5 kHz
- Galvanic isolation via optocouplers
- Open collector output
- 5 mm single in-line package (SIP)
- Dimensions 5 mm × 12.7 mm × 20 mm
Modular I/O components - digital output
Description
For control of relays, lamps, buzzers or other signaling devices.
Features
- Signal: 0-5 kHz
- Galvanic isolation through optocouplers
- Solid state relay, or transistor output
- 5 mm single in-line package (SIP)
- Dimensions 5 mm × 12.7 mm × 20 mm
Modular I/O components - analogue input
Description
For measurement of analogue signals, potentiometers, temperature sensors as well as other current or voltage sources.
Features
- Signal: 0-10 V or 0-20 mA or Pt100
- Optional: isolated or non-isolated signal
- DC voltage/current as well as different types of temperature sensors
- 5 mm single in-line package (SIP)
- Dimensions 5 mm × 12.7 mm × 20 mm
Modular I/O components - analogue output
Description
For the control of speed regulators, heating regulators or other voltage/current measuring devices.
Features
- Signal: 0-10 V or 0-20 mA
- Optional: isolated or non-isolated signal
- 5 mm single in-line package (SIP)
- Dimensions 5 mm × 12.7 mm × 20 mm
Mechanical relays
Description
For switching higher currents with a low switching frequency.
Features
- Signal: 0-20 Hz
- Galvanic isolation
- Dry contact
- 5 mm single in-line package (SIP)
- Dimensions 5 mm × 12,7 mm × 20 mm
- Usage with the evaluation boards is not recommended, as a current of 25 mA is required.
Communication modules
Description
These modules can be used to address different communication interfaces. The communication modules use 2 signal pins on the control side as opposed to the I/O modules, each using 1 signal pin.
Features
- TX/RX wiring on the control side
- RS232, RS422, RS485, USB, LAN, CAN
- Optional: isolated or non-isolated signal
- 5 mm single in-line package (SIP)
- Dimensions 5 mm × 12.7 mm × 20 mm
- Not usable with the evaluation boards for Arduino and Raspberry Pi
